Server Heatsink 2U heatsink 104-0046-1
BFCOOLER specializes in high-performance thermal management products, including CPU coolers, ITX cooling systems, industrial heat sinks, server cooling modules, and customized heat dissipation solutions for new energy and electronic equipment. With strong capabilities in CNC machining, skiving fin processing, heat pipe assembly, stamping, welding, and precision manufacturing, we provide reliable OEM and ODM services for global customers. From product design and sample development to mass production and quality inspection, our team is committed to delivering efficient cooling performance, stable product quality, fast delivery, and cost-effective solutions for your projects.
Product description

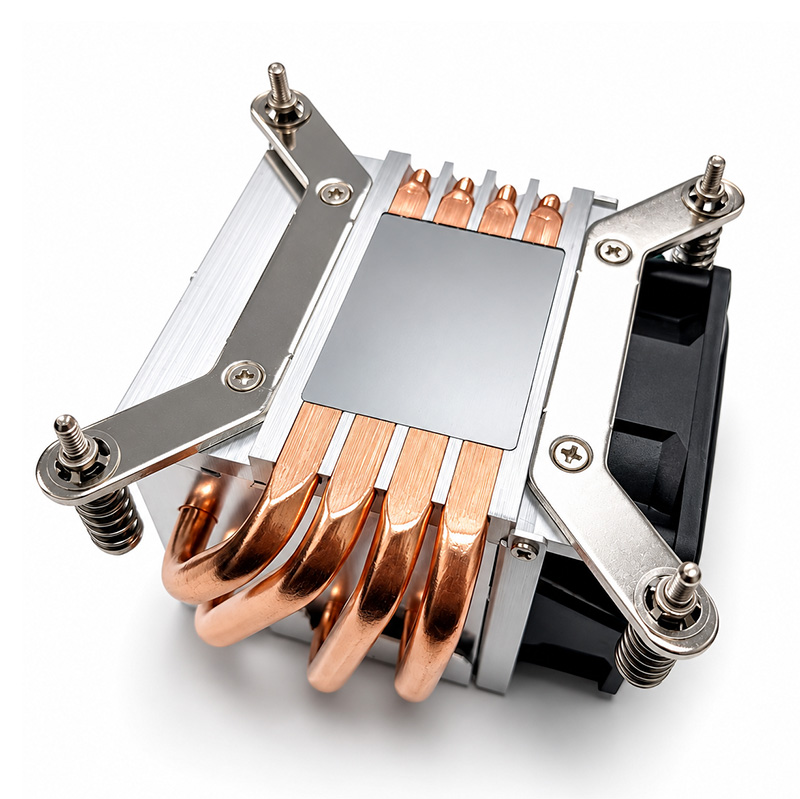

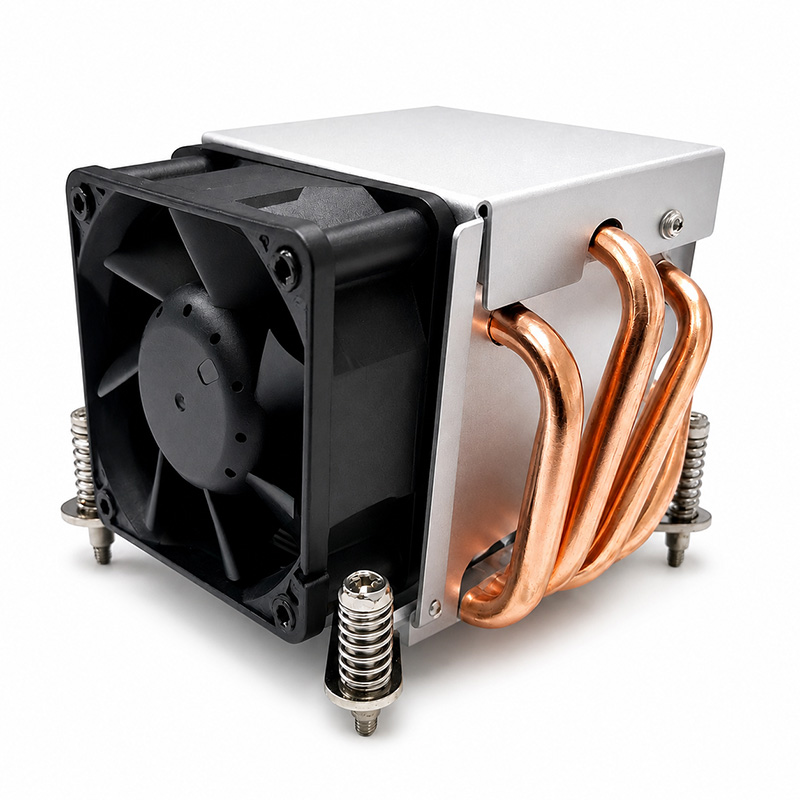

2U heatsink 104-0046-1
High-performance 2U server CPU heatsink designed for efficient heat dissipation in dense rack systems.
125W TDP
Copper Heatpipes
Server Grade
2U Rack
Product Advantages
Copper Heat Pipe Structure
Compact 2U Design
High Airflow Optimization
Stable Server Cooling
Low Resistance Fin Stack
Reliable Long-Term Operation
Technical Specifications
| Model | 104-0046-1 (2U heatsink) |
| Overall Dimension | 90×88×66 mm |
| Weight | 326 g |
| TDP | 125W |
| Heat Pipes | 4 |
| Fins | 34 |
| Heat Base Material | Copper (CU) |
| Surface Treatment | Nickel Plated |
| Top Cover Type | Aluminum |
| Fan Dimension | 60×60×25 mm |
| Fan Frame Colour | Black |
| Fan Blades / Colour | 7 Blades / Black |
| LED Qty / Type | / |
| Rated Current | 0.66A |
| Rated Voltage | 12V DC |
| Power Consumption | 7.92W |
| Fan Speed | 7000 RPM ±10% |
| Bearing Type | Two Ball Bearing |
| Fan Life | 70000 Hours (30°C, 15–65% RH) |
| Static Pressure | 16.05 mmH2O (MAX) |
| Air Flow | 32.65 CFM (MAX) |
| Noise | 49.55 dBA |
| Connector | 2.54-4Pin PWM |
| CPU Compatibility | 115X / 1700 |
| Package Dimensions | 465×352×223 mm |
| QTY | 24 PCS |
| Net Weight | 9 KG |
| Gross Weight | 9.8 KG |
Application Scenarios
Server System
Data Center
Workstation
Industrial PC
OEM / ODM Process
Requirement Analysis
Engineering Design
Sample Testing
Mass Production
Manufacturing Capability
Start Your OEM Project Today
Get quotation, customization and sample support directly from factory.
Discover more in our FAQ
Q: How can I get a quotation?
A: Please send us your drawings/specs/materials/quantities to our email and Leave your email, and we will provide a quote promptly to your email.
Q: Can you do EXW/FOB/CIF/DDP terms?
A: Yes, we support various Incoterms. Main shipping ports are Shanghai 、 Ningbo and Shenzhen.
Q: What markets do you serve?
A: We serve clients in the USA, UK, Germany, Australia, Japan, the Middle East, and Southeast Asia.
Q: Can I get a sample first? How long does it take?
A: Yes, samples are available. It usually takes 3–7 days depending on the complexity.
